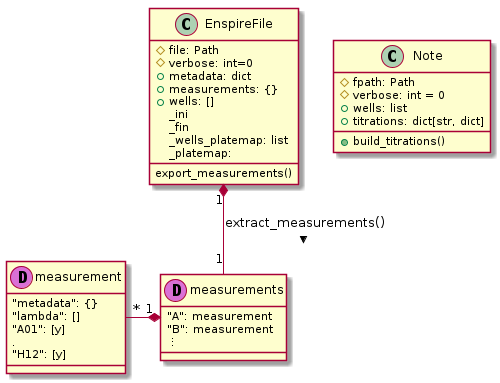

Here is the UML for classes implementations.

UML#

class EnspireFile { #file: Path #verbose: int=0 +metadata: dict +measurements: {} +wells: [] _ini _fin _wells_platemap: list _platemap: export_measurements() } class Note { #fpath: Path #verbose: int = 0 +wells: list +titrations: dict[str, dict] +build_titrations() } EnspireFile "1" *-- "1" measurements : > extract_measurements() measurement "*" -* "1" measurements class measurements << (D,orchid) >> { "A": measurement "B": measurement ⋮ } class measurement << (D,orchid) >> { "metadata": {} "lambda": [] "A01": [y] . "H12": [y] }
